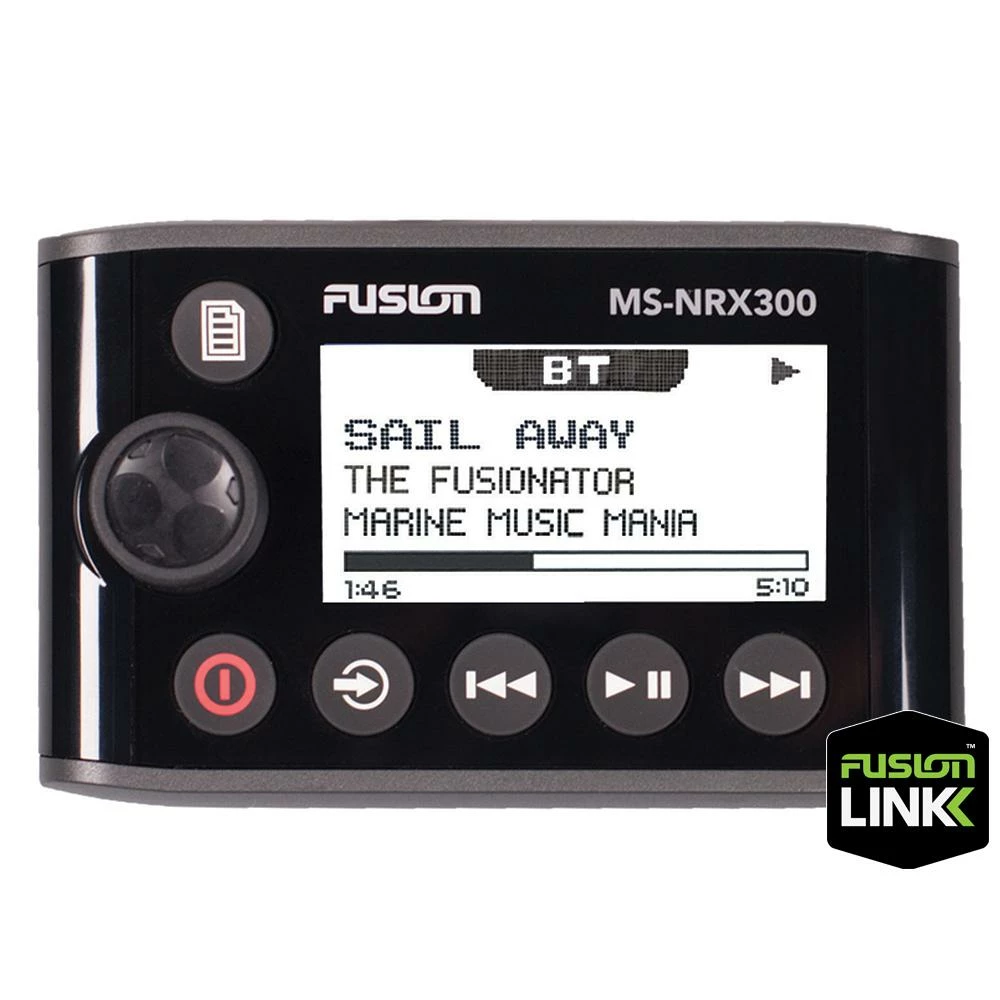

FUSION MS-NRX300 Wired Remote Control

MS-NRX300 Remote Control – Wired NMEA 2000

010-01628-00

Features:

• Multi-Zone Technology
• Install the MS-NRX300 wired remote anywhere onboard the vessel, in the flybridge, cockpit, saloon or cabin for example and gain full localized control of one or up to four individual audio zones.
• NMEA 2000 Certified Certified for connection to any NMEA 2000 network making installation straight forward, saving time and money. Once connected, the wired remote will double as a NMEA 2000 repeater displaying supported NMEA data on screen.

Complies With IPx7 Waterproof Standards.

Perfect for installation on a swim platform or deck, the MS-NRX300 wired remote control is designed for the marine environment.

• Designed specifically for the marine environment, featuring a 3 year warranty.
• Flush & Dash Moutning Options.  Innovative design allows an installer the option of either mounting the wired remote with a conventional dash finish or an option to integrate into a glass helm with a flush surface mount.
• Superior Optically Bonded LCD Display  Large high contrast daylight viewable 2.6″ optically bonded LCD will display crystal clear data/track information and prevent moisture build up or fogging.

Specifications:

• NMEA 2000 Certified LEN: 3
• Large 2.6″ Monochrome optically bonded LCDgh contrast daylight viewable in direct sunlight
• Adjustable backlit LCD
• Dash or Flush mount installation options
• Local zone control or all zone control (up to 4 zones)
• Complies with IPx7 waterproof standards
• STM32 Micro Processor
• Rotary encoder
• Advanced user interface
• ‘Positive feel’ rubber keypad

In the Box:

• MS-NRX300 Remote w/attached 1 M Drop Cable
• Dust Cover
• 6 M NMEA 20000 Backbone Cable
• NMEA 2000 T-Connector
• NMEA 2000 Female Terminator
• NMEA 2000 In-line Terminator
• Hardware mounting kit
• Mounting template
