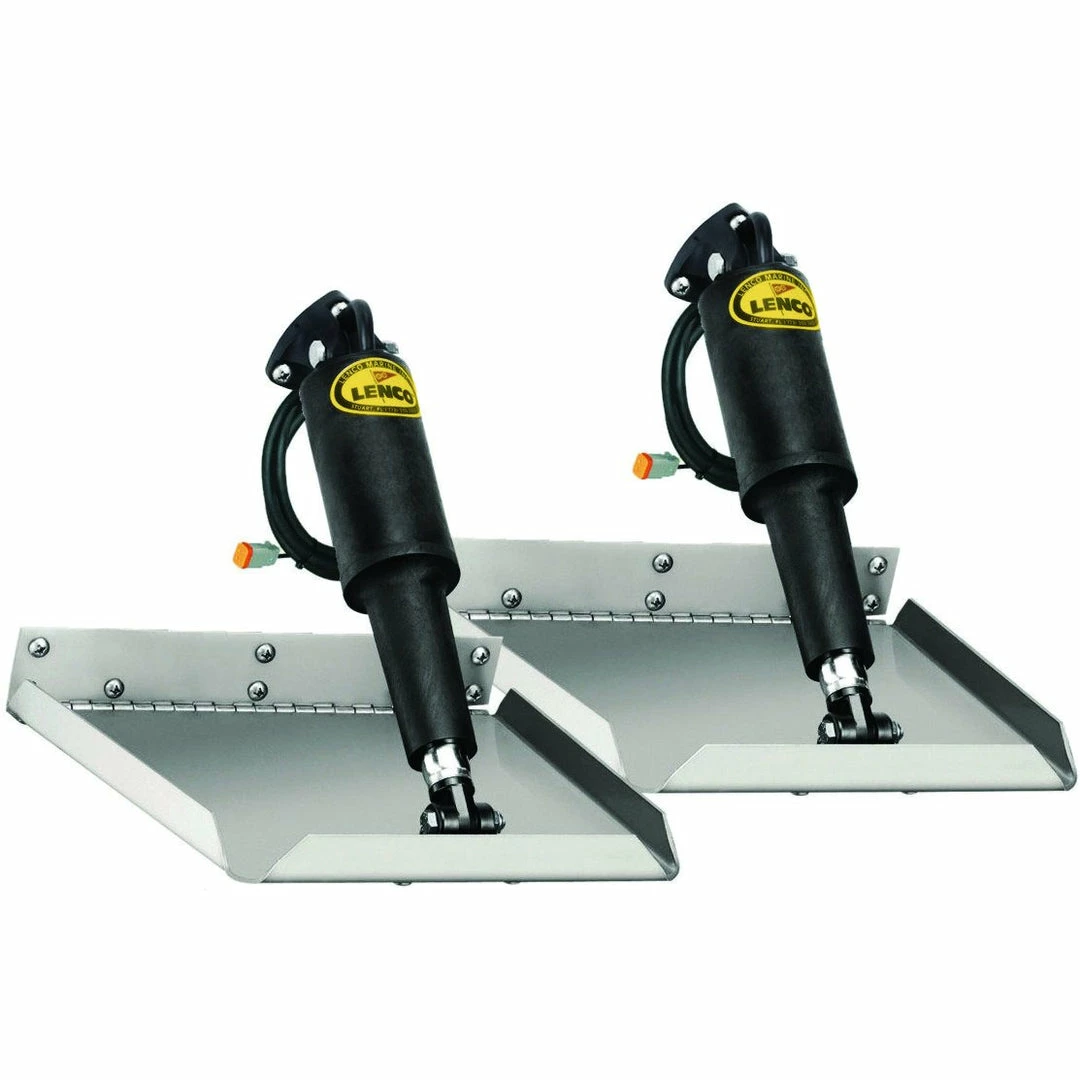

LENCO MARINE INC. LENCO 12×12 Edge Mount Trim Tab (No Switch)
Original price was: $559.99.$95.99Current price is: $95.99.
- Worry-Free Shopping with Safe Payments
- Fast and Secure Payments
- Enjoy top quality items for less
- Secure Shopping Starts with Safe Payments
LENCO 12×12 Edge Mount Trim Tab (No Switch)?
Designed for boat applications where a lower actuator mounting height is desirable. Actuator mounts at the trailing edge of the blade giving it a ½” (1.3 cm) lower mounting height on 9” (22.9 cm) long blades & 3” (7.6 cm) lower mounting height on 12” (30.5 cm) long blades. All edges are turned up for added strength and style. Boat lengths 14’ (4.3 m) to 36’ (11 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with 1” (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge, & 1/8” (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.
Boat Length: 17′ – 30′
Hinge Height: 2″ (5.1 cm)
Min Transom Height: 13.5″ (34.3 cm)
Out of Package Width (in): 12
Out of Package Length/Depth (in): 12
(2) 15054-001 actuators with 6′ (1.8 m) leads and Deutsch connectors
(2) 30133-103 actuator extension wiring harnesses – 20’ (6.1 m) length
(2) 15085-001 upper mounting brackets with gland seal
(2) 50014-001 lower mounting brackets
Lenco owner’s/installation manual
12-volt
| Size | 12 x 12 |
|---|
